Concrete Calculator

Accurate concrete planning starts with the inside dimensions of the forms. The Concrete Calculator converts length, width, and thickness into the volume required for slabs, pads, footings, and other rectangular pours. It can also include repeated sections and a waste allowance before estimating the number of 40, 60, or 80 lb bags.

What the Concrete Calculator Estimates

The calculator converts your measurements into:

• base concrete volume before waste
• additional volume from the selected waste allowance
• total concrete needed in cubic yards
• equivalent volume in cubic feet and cubic meters
• estimated 40, 60, and 80 lb bags, rounded up to whole bags

Each dimension can use the unit shown beside its field, so a project may be entered as feet by feet by inches without manually converting the thickness first. The number-of-sections input is useful for equal pads, steps, footings, or repeated rectangular pours.

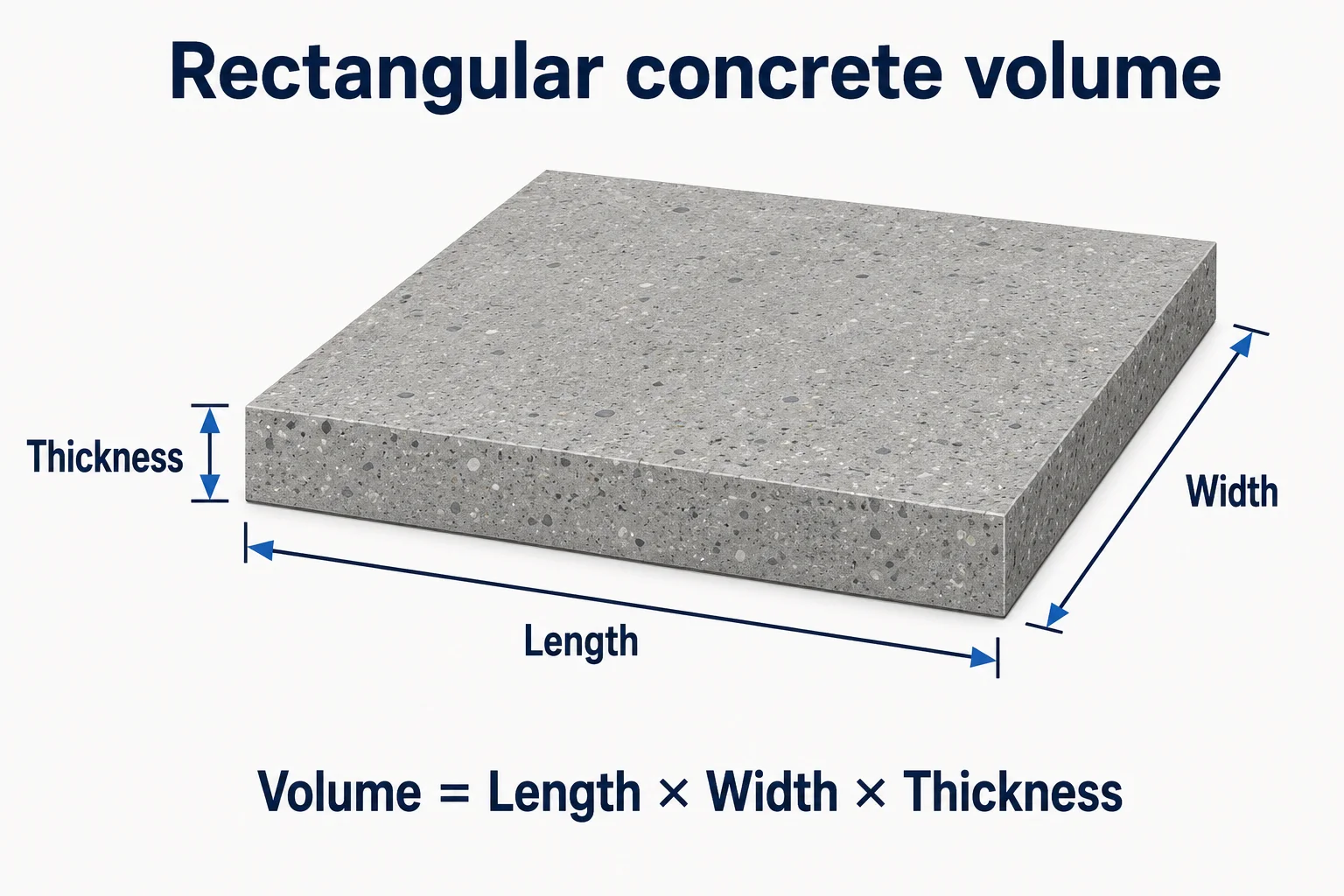

Concrete Volume Formula

For one rectangular section, the base formula is:

Volume = Length × Width × Thickness

When several identical sections and a waste percentage are included:

Total volume = L × W × T × Quantity × (1 + Waste% / 100)

All three dimensions must be converted to compatible units before manual multiplication. If length and width are in feet and thickness is in inches, divide the thickness by 12 to convert it to feet.

Useful volume relationships include:

• 1 cubic yard = 27 cubic feet
• 1 cubic foot = 0.0283168 cubic meters
• 1 cubic meter = 35.3147 cubic feet

How to Use the Calculator

1. Measure the inside length and width of the forms or excavation.
2. Enter the planned finished depth or slab thickness.
3. Select the correct unit beside each measurement.
4. Enter the number of identical sections. Use 1 for a single pour.
5. Add a waste allowance based on the site and project conditions.
6. Click Calculate and review the total volume and bag estimates.

Measure at several points when the excavation or subgrade is uneven. Using only the shallowest depth can underestimate the actual volume.

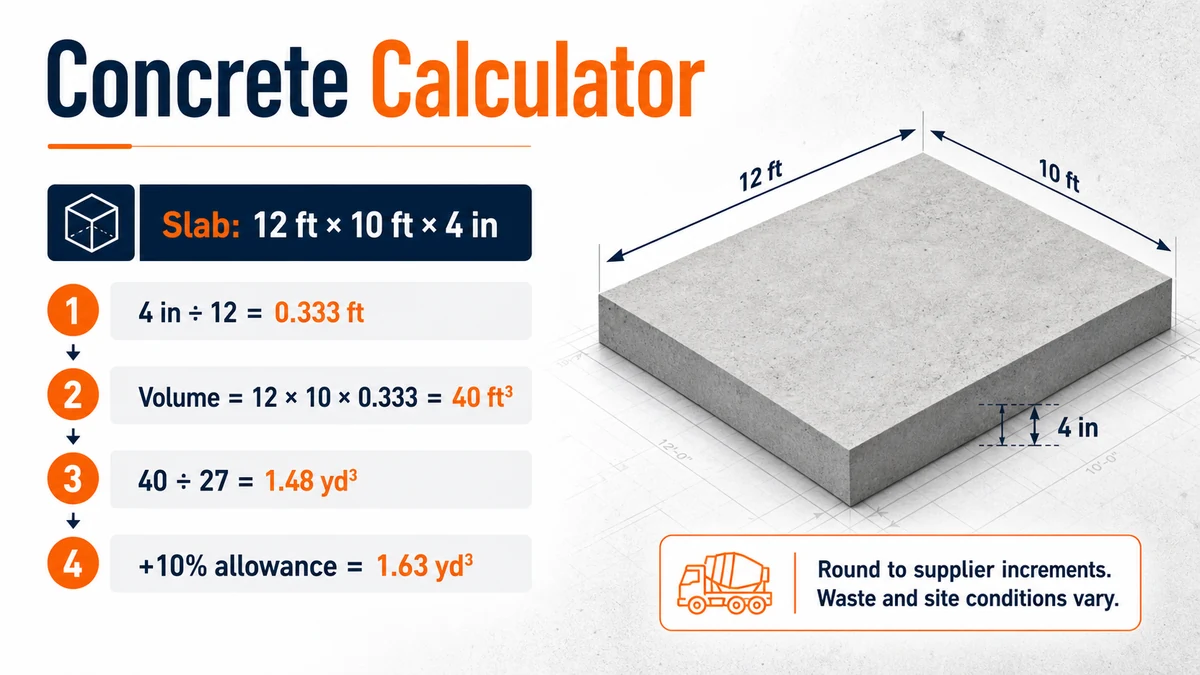

Worked Example: Concrete Slab

Suppose a slab measures 12 ft long, 10 ft wide, and 4 in thick. The project has one section and a 10% waste allowance.

First convert the thickness to feet:

4 in / 12 = 0.3333 ft

Calculate the base volume:

12 × 10 × 0.3333 = 40 cubic feet

Add 10% for waste and site variation:

40 × 1.10 = 44 cubic feet

Convert the order volume to cubic yards:

44 / 27 = 1.63 cubic yards

Using common approximate yields, the same volume would require about 74 bags of 80 lb mix, 98 bags of 60 lb mix, or 147 bags of 40 lb mix. Bag counts are always rounded up because a partial bag cannot be purchased as a complete unit.

Concrete Bag Yield and Waste Allowance

The calculator’s bag estimates use common nominal yields of approximately 0.30 ft³ for a 40 lb bag, 0.45 ft³ for a 60 lb bag, and 0.60 ft³ for an 80 lb bag. These values match published yields for a widely sold general-purpose concrete mix, but another product may differ. Check the yield printed on the exact bag before buying.

A waste allowance covers more than spilled material. Extra volume may be needed because of uneven excavation, bowed forms, over-excavation, inconsistent thickness, and placement losses. The National Ready Mixed Concrete Association discusses an allowance of roughly 4% to 10% over plan dimensions for waste and contingencies. A simple, accurately formed pad may need less contingency than an irregular excavation.

Measurement Tips for Better Estimates

• Measure the actual inside form dimensions rather than relying only on drawing dimensions.
• Check depth at several locations and account for low areas in the subgrade.
• Divide irregular projects into separate rectangular sections and calculate each section individually.
• Do not subtract reinforcement, because its displaced volume is normally insignificant for an ordering estimate.
• Confirm bag yield, available package size, and ready-mix supplier ordering increments before purchase.

Assumptions and Limitations

• The calculated shape is rectangular with a uniform finished thickness.
• Repeated sections are assumed to have identical dimensions.
• Bag yields are approximate and can vary by product, mixing water, handling, and field conditions.
• The result estimates material volume only; it does not calculate cement-to-aggregate ratios, water content, strength, reinforcement, subbase, formwork, labor, delivery charges, or curing time.
• The calculator does not determine whether a selected slab thickness or concrete specification is structurally adequate.
• Large, structural, load-bearing, or code-regulated pours should follow approved plans and local requirements.

Common Mistakes to Avoid

• Multiplying feet by inches without converting the units
• Using slab area instead of cubic volume
• Forgetting repeated sections or separate footings
• Entering 4 feet when the intended slab thickness is 4 inches
• Buying the exact calculated volume without allowing for field variation
• Assuming every concrete-mix bag has the same yield

Concrete Calculator FAQs

How do I calculate concrete for a slab?

Multiply the slab’s length by width by thickness after converting all measurements to compatible units. Add the chosen waste allowance to obtain the ordering volume.

How many cubic feet are in a cubic yard of concrete?

One cubic yard contains exactly 27 cubic feet. Divide cubic feet by 27 to convert the result to cubic yards.

How many 80 lb bags make one cubic yard?

At an approximate yield of 0.60 ft³ per bag, one cubic yard requires 45 bags before adding waste. Verify the yield of the specific product.

How much extra concrete should I allow?

The appropriate allowance depends on form accuracy, excavation, access, and placement conditions. A range around 4% to 10% is commonly considered for waste and contingencies, but the project may require a different amount.

Does the calculator determine the correct slab thickness?

No. Thickness is an input, not a design result. Structural loads, soil conditions, reinforcement, frost exposure, and local codes can affect the required design.

Can I use the calculator for irregular shapes?

Divide the project into measurable rectangular sections and calculate them separately. Curves, slopes, circular piers, and varying depths need shape-specific calculations or professional takeoff methods.

Related Calculators

Continue planning with the Paver Calculator, Topsoil Calculator, Mulch Calculator, or Fence Calculator.

References

• QUIKRETE Concrete Mix Technical Data: Package Yields
• National Ready Mixed Concrete Association: Discrepancies in Yield
• QUIKRETE Concrete Calculator
